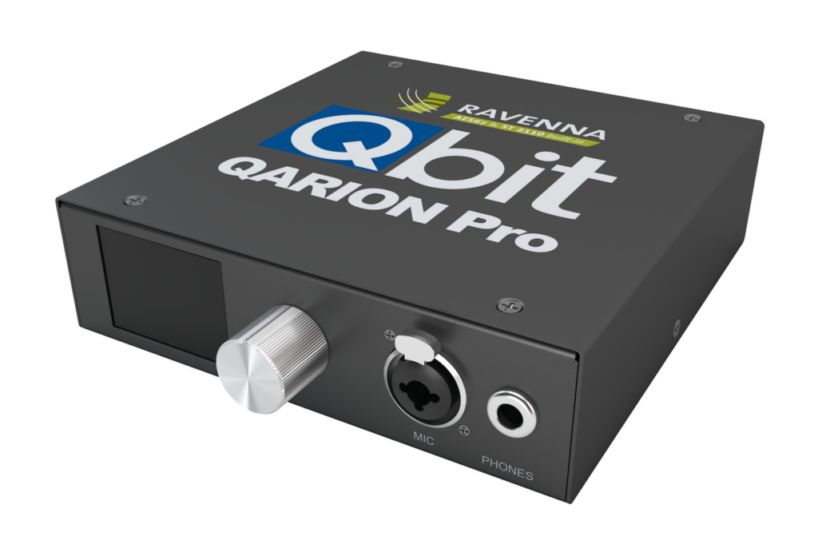

QARION® Pro

The compact RAVENNA node.

The QARION Pro converts one stereo channel from AES3 or analog baseband audio to RAVENNA or vice-versa. Additionally, it is equipped with a headphone output and a microphone amplifier, making it the perfect studio companion. It is the perfect solution to monitor and check all the streams in your RAVENNA network.

QARION® Pro The compact RAVENNA node.

Preliminary Product Specifications

IP Audio
- RAVENNA
- Livewire+™
- AES67
- SMPTE ST 2110-30 / -31
- Up to 16 RAVENNA streams
- Up to 64 channels per stream
- Sampling rate: 48, 96, 192 kHz
Baseband Audio
- Digital AES3 Audio
- Analog left / right
- Dual Microphone
- Dual Headphones
Network interfaces
4 Ethernet interfaces
- Dual streaming according to SMPTE ST 2022-7
- Isolation of all networks by integrated firewall
- Network roles can be freely assigned to any of the interfaces
Connectors
Network interfaces
- 4x RJ45
Audio In
- 2x XLR-female AES3 / analog left, Microphone 2 / analog right
- 1x XLR-female Microphone 1
Audio Out
- 2x XLR-male AES3 / analog left, analog right
- 2x 6,35 mm (1/4″) TRS headphone
Power
- USB-C
USB Audio In/Out
- USB-C
Control
- HTML5 Web UI
- Color display, jog wheel on front panel
- Remote control with NMOS, SNMPv2c, EmBER+
Power Requirements
Power supply
- 12 V DC External power supply
- PoE
Power consumption: < 10 W
